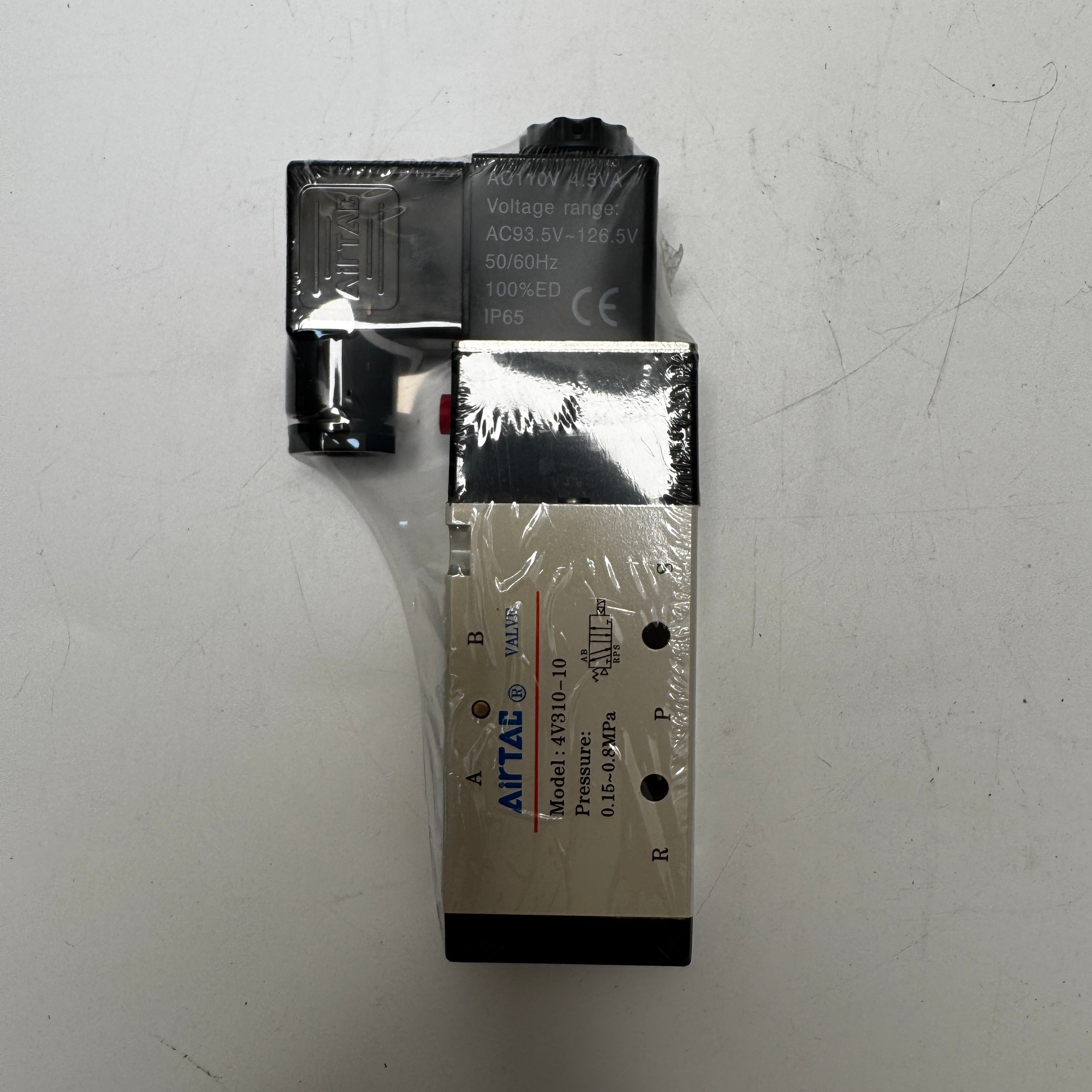

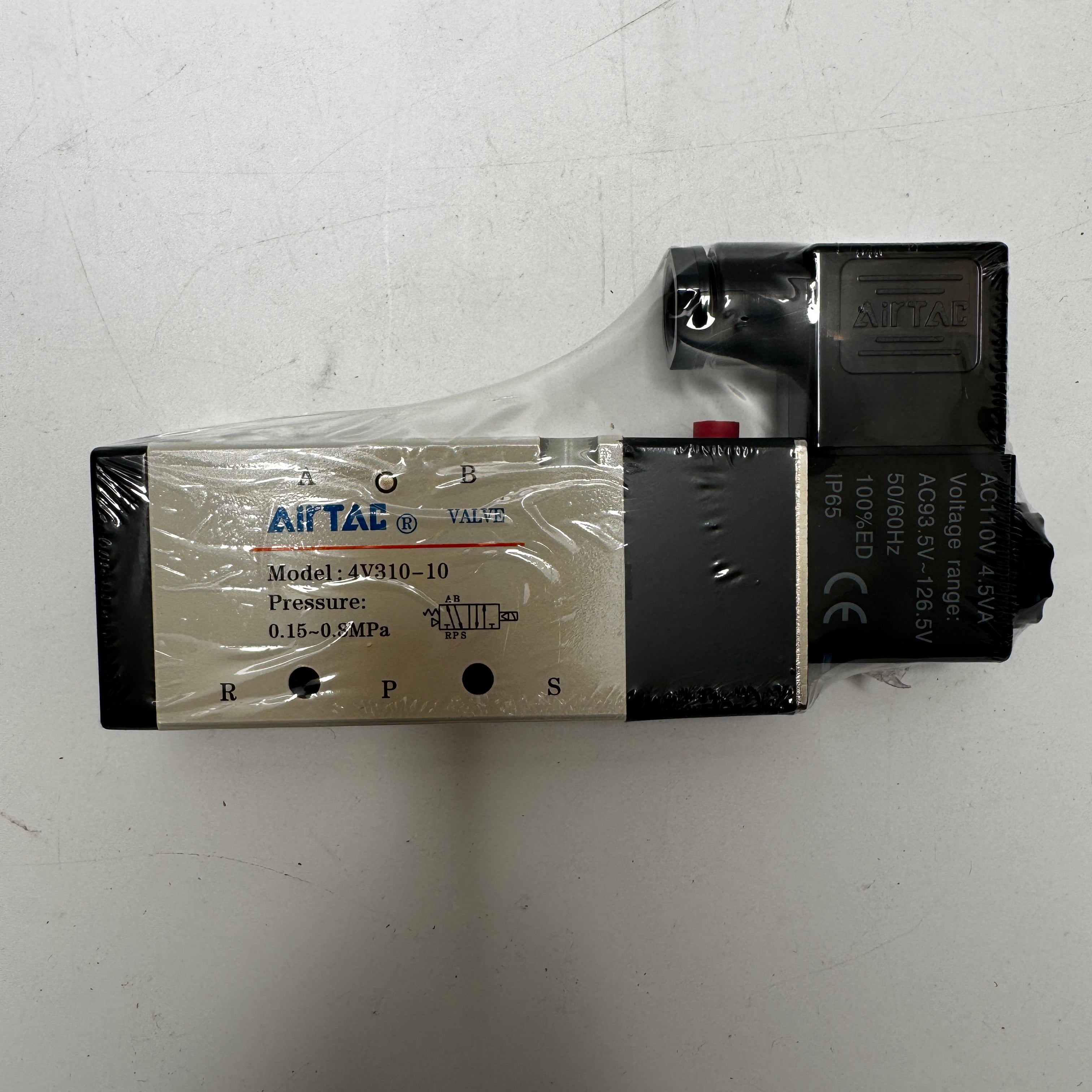

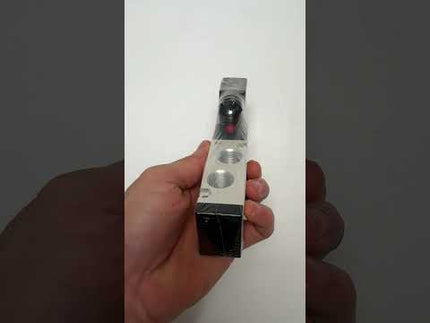

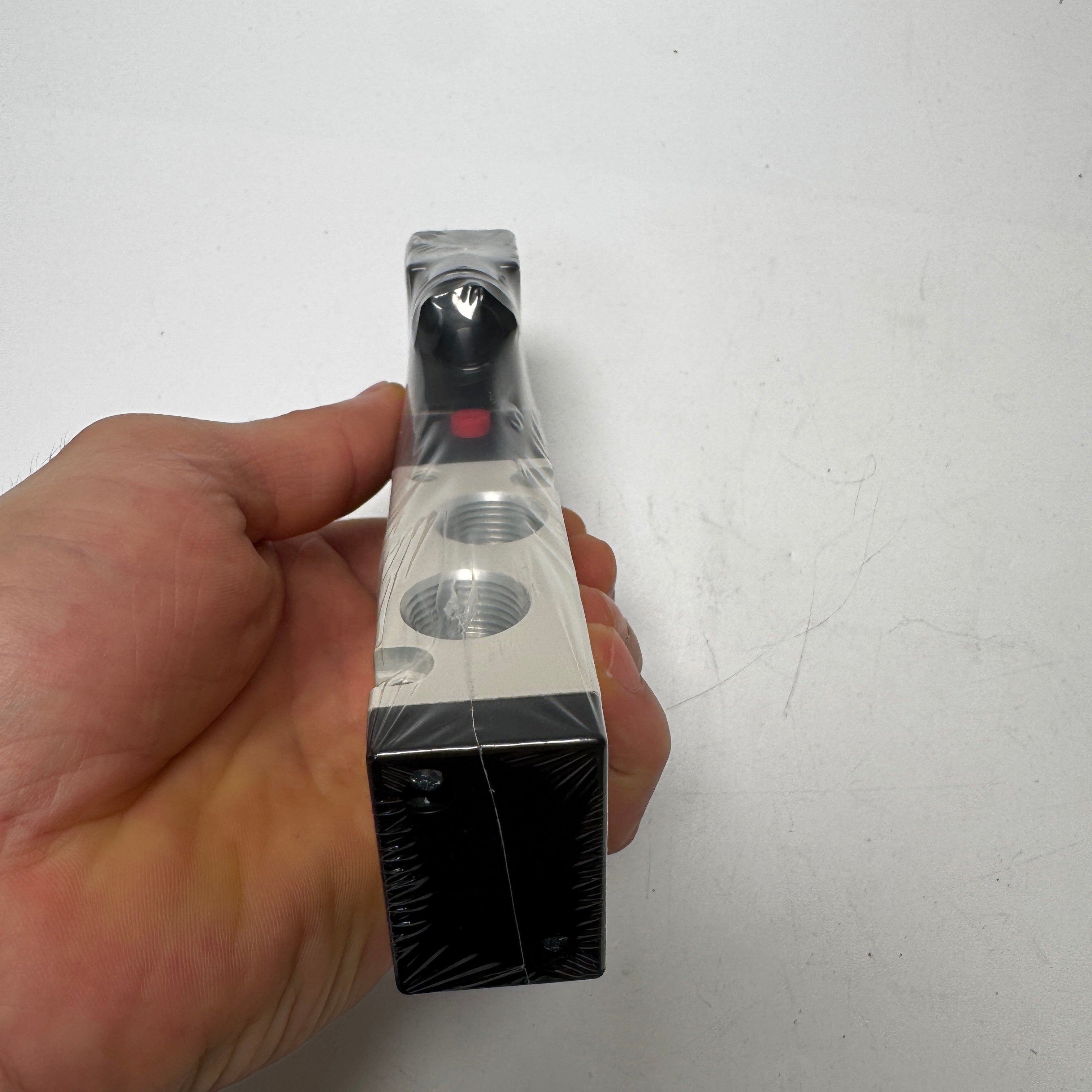

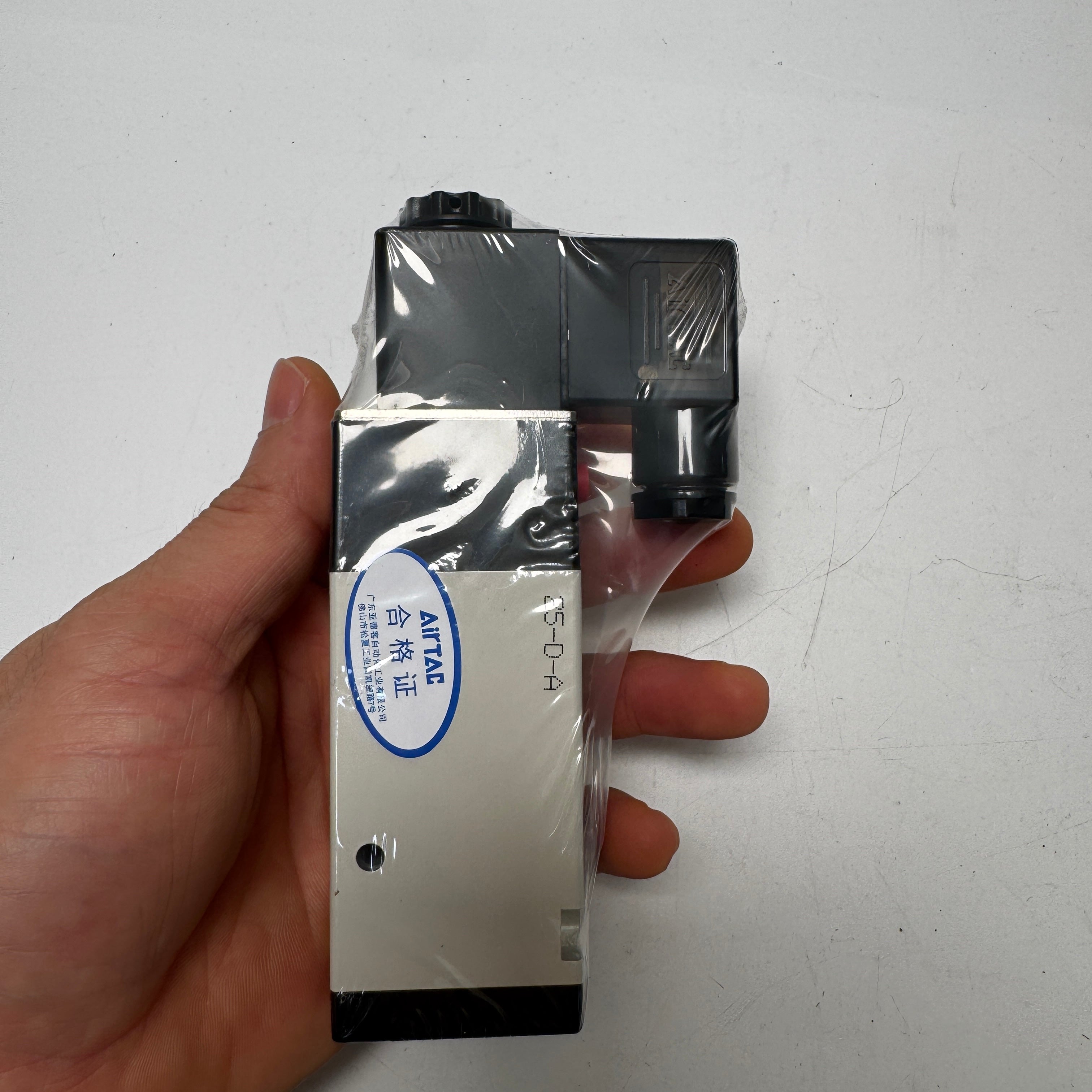

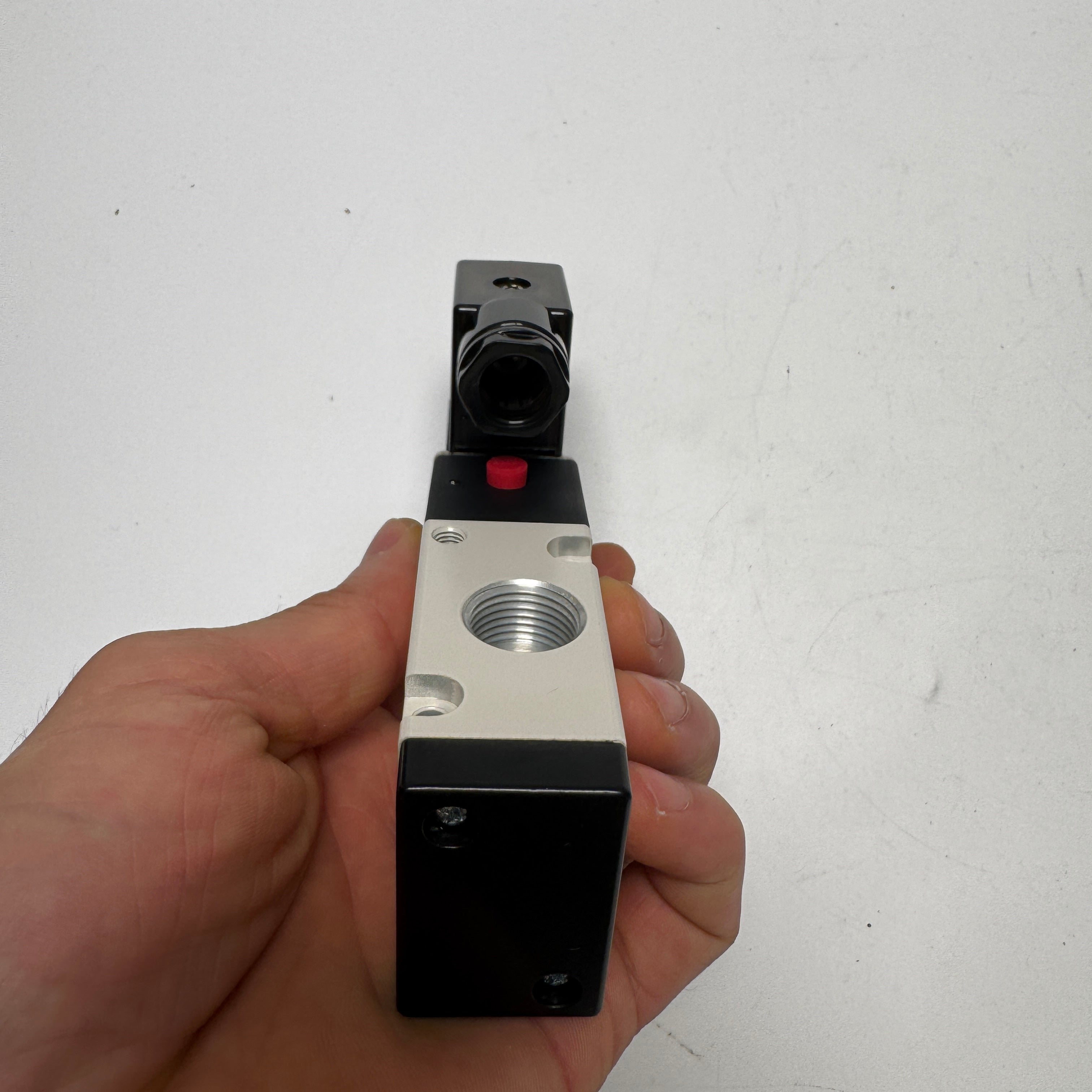

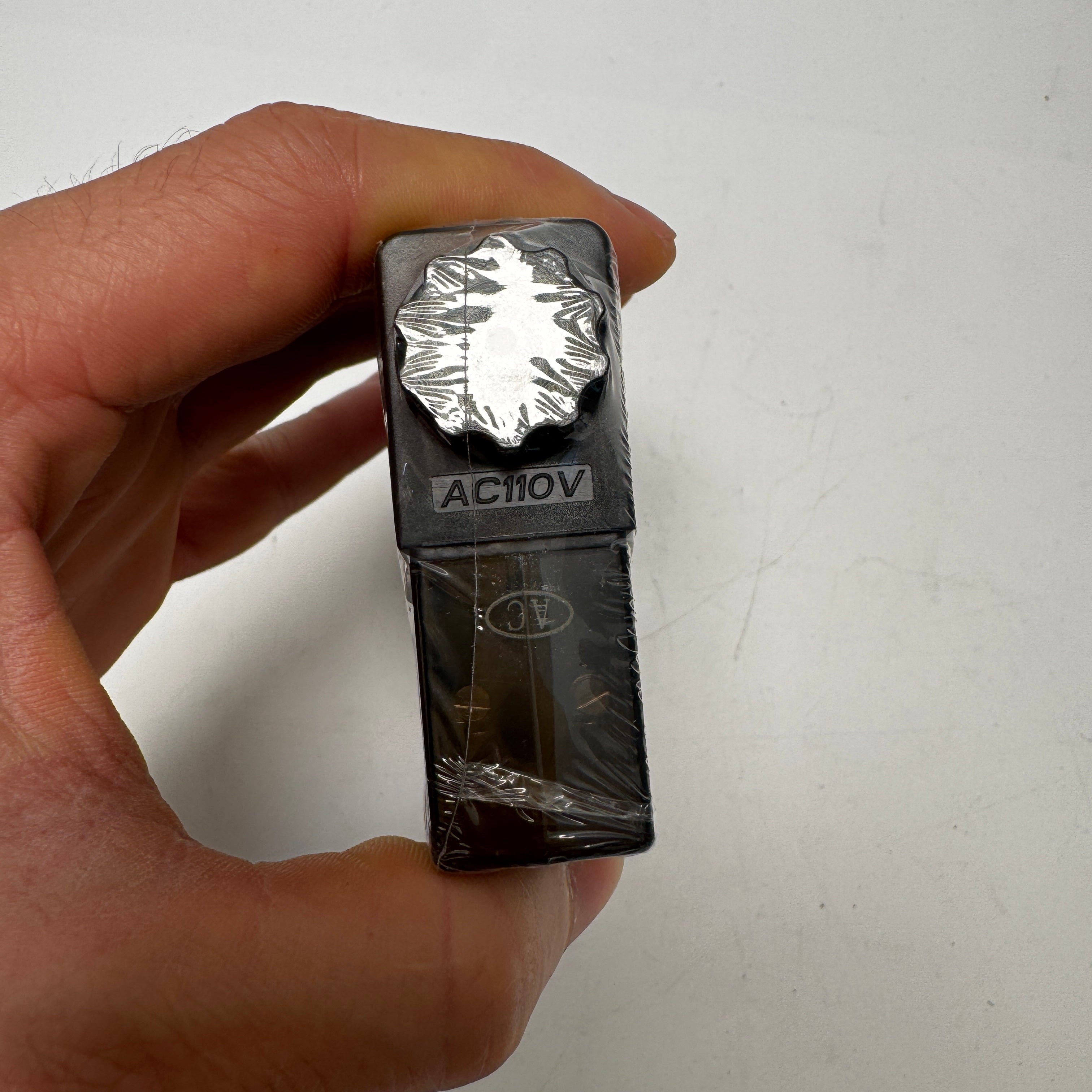

Airtac 4V310-10: Solenoid Air Valve - 4V31010C-W

Name: Airtac 4V310-10: Solenoid Air Valve - 4V31010C-W
Brand: Big fish

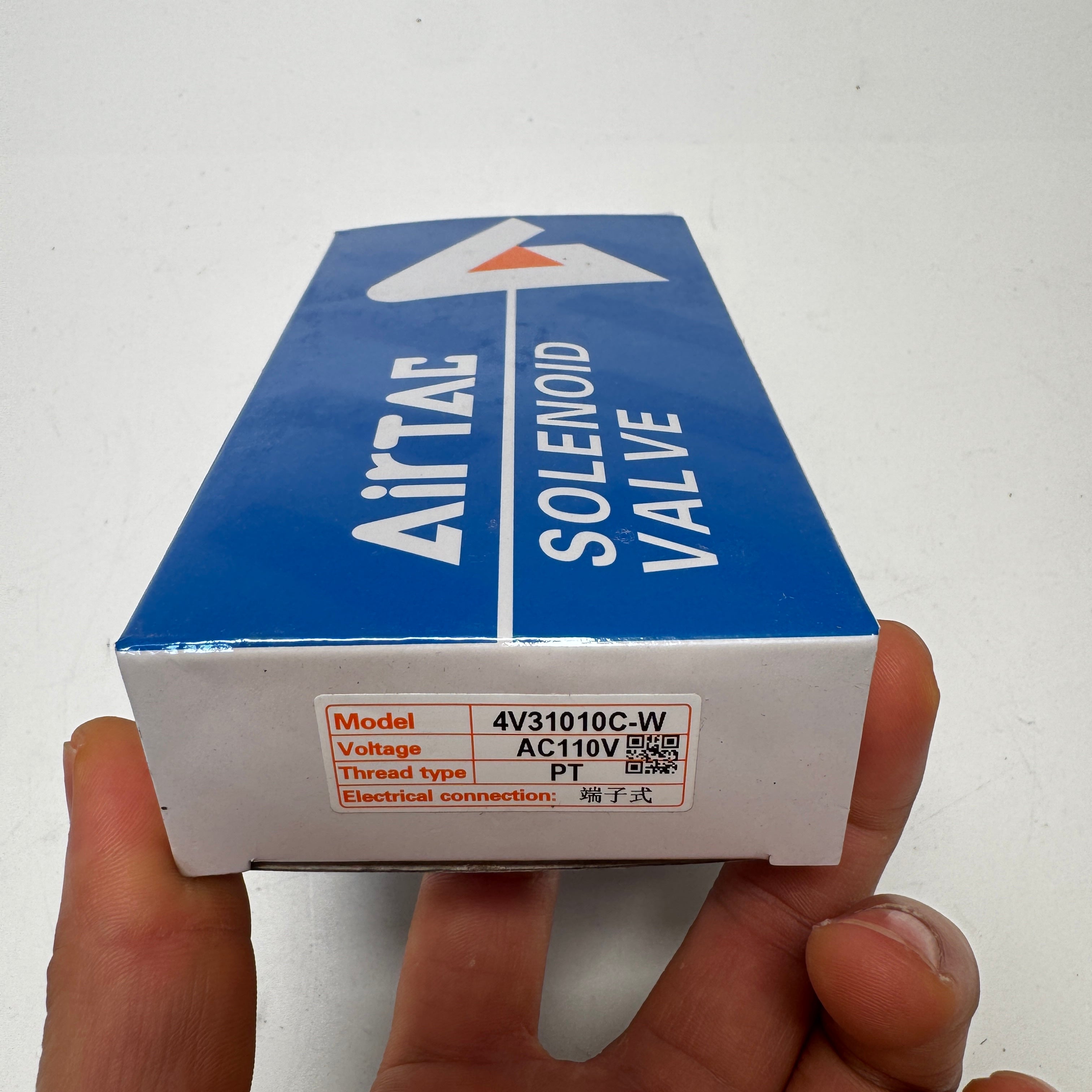

SKU: 4V31010C-W
Price: 30.76 USD
Availability: InStock

Product form

Pneumatic valve single solenoid 5 way 3/8 PT port AC 110V external pilot terminal entry 300 seriesSolenoid Air Valve 4V31010CW... Read more

SKU: 4V31010C-W

$30.76

The Airtac 4V300 solenoid air valve series is a functional replacement for the SMC VFS3000 series.

Airtac Product Details

Valve

Guide type optional: internal pilot or external pilot.
Sliding column structure with excellent sealing performance and quick response.
Three-position solenoid valve offers three optional central functions.
Double-head two-position solenoid valve supports memory function.
Inner bore is processed with special technology to reduce friction, lower starting air pressure, and extend service life.
Lubrication is not required.
Compatible with integrated manifold for space-saving installation.
Equipped with manual device for easy installation and debugging.
Available in various standard voltage levels.

Model	4V310-08 4V320-08	4V330C-08 4V330E-08 4V330P-08	4V310-10 4V320-10	4V330C-10 4V330E-10 4V330P-10
Working Medium	Filtered air (40 μm or finer)
Actuation Type	Internal pilot or external pilot
Port Size [Note 1]	In = Out = Exhaust = PT1/4	In = Out = PT1/4, Exhaust = PT1/4	In = Out = PT3/8, Exhaust = PT1/4	In = Out = PT3/8, Exhaust = PT1/4
Effective Area (Cv) [Note 4]	4V310-10, 4V320-10: 28.0mm² (Cv = 1.65)	4V330C-10: 21.3mm² (Cv = 1.25)	4V310-10, 4V320-10: 28.0mm² (Cv = 1.65)	4V330C-10: 21.3mm² (Cv = 1.25)
Position & Ports	5/2 way	5/3 way	5/2 way	5/3 way
Operating Pressure Range	0.15–0.8 MPa (21–114 psi)
Max Pressure Resistance	1.2 MPa (175 psi)
Operating Temperature	–20 to 70°C
Body Material	Aluminum alloy
Lubrication [Note 2]	Not required
Max Actuation Frequency [Note 3]	4 cycles/sec	3 cycles/sec	4 cycles/sec	3 cycles/sec
Weight (g)	4V310-08: 400g 4V320-08: 400g	450g	4V310-10: 400g 4V320-10: 400g	450g

Notes:

[Note 1] Port thread type can be G-thread or NPT optional.
[Note 2] If lubrication is necessary, use ISO VG32 or equivalent. Once started, do not stop lubrication.
[Note 3] Maximum actuation frequency is based on unloaded state.
[Note 4] Effective area and Cv value are measured based on standard flow rate testing.

Item	AC220V	AC110V	AC24V	DC24V	DC12V
Rated Voltage	AC220V	AC110V	AC24V	DC24V	DC12V
Voltage Range	AC: ±15%, DC: ±10%
Power Consumption	4.5VA	4.5VA	5.0VA	3.0W	2.5W
Protection Level	IP65 (DIN40050)
Insulation Class	Class B
Wiring Type	DIN connector or lead wire type
Excitation Time	≤ 0.05 seconds

Example: 4V310-08A□□-W

No.	Code	Description
①	4V	5-port 2-position / 5-port 3-position solenoid valve
②	3	300 Series
③	10 20 30C 30E 30P	10: 2-position, single solenoid 20: 2-position, double solenoid 30C: 3-position, closed center 30E: 3-position, exhaust center 30P: 3-position, pressure center
④	08 10	08: 1/4" port 10: 3/8" port
⑤	A B C E F	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V
⑥	(blank) I	(blank): DIN connector I: Lead wire type *Lead wire length: 0.5m
⑦	(blank) G T	(blank): PT thread G: G thread T: NPT thread
⑧	(blank) -W	(blank): Internal pilot W: External pilot (with M5 external pilot port)

Note: For lead wire type, standard cable length is 0.5m.
For base plate specifications and ordering methods, please refer to page P82.
