Description

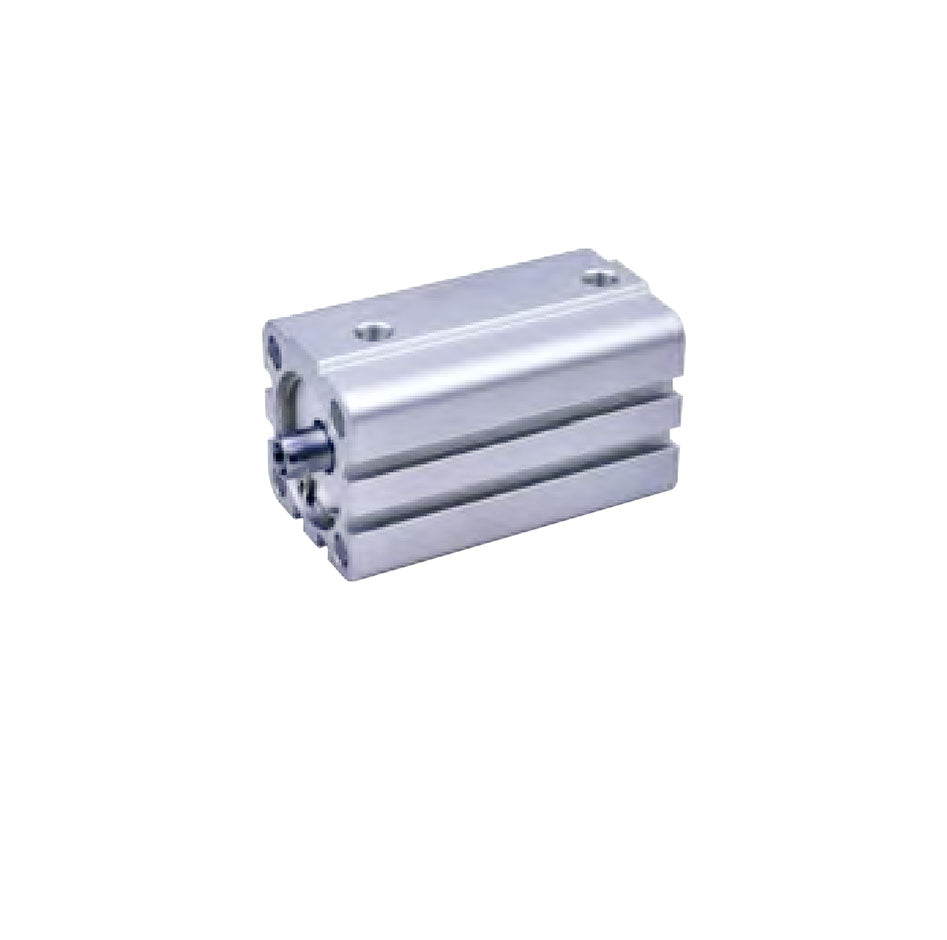

Compact cylinder,single acting-push,20mm bore,10mm stroke,without magnet,female thread,PT thread
Product feature:
1.In accordance with ISO21287 standard,the mounting size is
vogue.
2.C clip is adopted to connect the cylinder body and back cover or front cover,and riveted structure is adopted to connect
piston and piston rod to make it compact and reliable
3.The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing,forming an excellent
abrasion resistance and durability.
4.The seal of piston adopts heterogeneous two-way seal structure It has compact dimension and the function of oil reservation.
5.Compact structure can effectively save fifty percent installation space comparing to same bore size of ISO15552 standardcylinder.
6.There are magnetic switch slots around the cylinder body,
whichis convenient to install inducting switch.
7.Bumper is available and it can availably absorb excrescent energy.
8.Installing accessorirs with various specifications are optional.
