Description

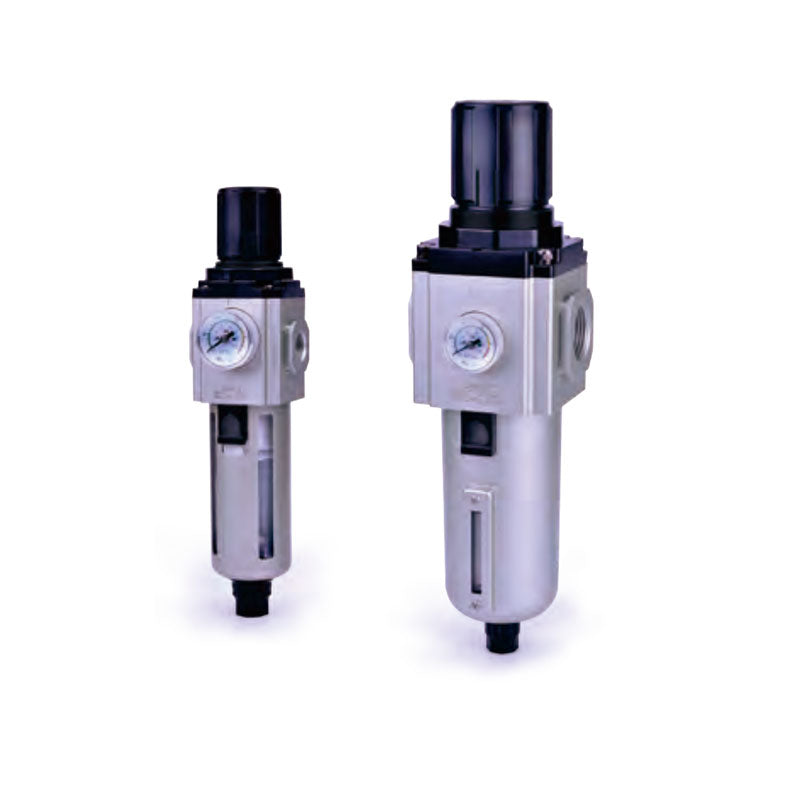

Series: GA300 series pressure regulating filter Cup body material: metal cup Nozzle caliber: 3/8" Drainage mode: differential pressure + manual drainage Type: Standard Type: low voltage type Bracket: attached bracket Pressure gauge: round gauge snap type Filtration accuracy: 40μm level Dental type: PT tooth (MPa/psi) Reverse flow valve: without reverse flow valve
Click to download Airtac product catalog
Product Features
1. Use round square pressure gauge with clip and magnifying glass to save installation space.
2. Press-in self-locking mechanism to prevent abnormal movement of set pressure caused by external interference.
3. The pressure regulating mechanism adopts balanced design.
4. The unique flow guide structure makes the air flow through the rotation, effectively separates the liquid from the air, and reliably filters the solid particles.
5. The filter grade is 5 microns, 40 microns (optional).
6. There are two types of drainage: semi-automatic drainage and automatic drainage.
7. The bowl body is made of PC nylon and metal, and can be installed with bracket.
The Airtac GAFR200-600 air preparation series is a functional alternative to the SMC AW20-40 series.
