Description

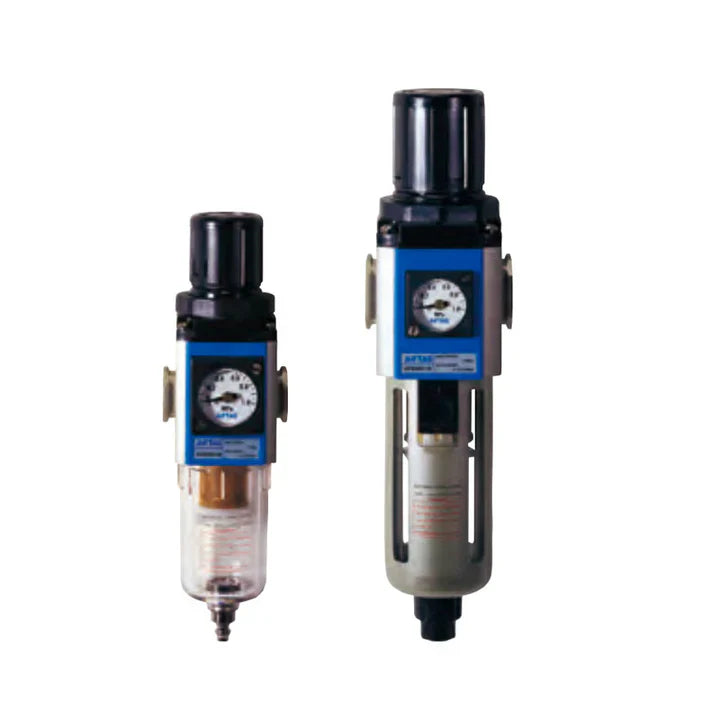

G600 series pressure regulating filter/1 "PT/manual drainage type/low pressure type/without bracket/with pressure gauge/square gauge/scale unit: psi/5μm grade/PT tooth/without reverse flow valve
Product Features：
1.Embedded square pressure gauge saves installation space (optional external round pressure gauge available).
2.Push-in self-locking mechanism prevents the set pressure from being altered by external interference.
3.Balanced design of the pressure regulation mechanism ensures stable pressure adjustment, minimal drift, and excellent pressure characteristics.
4.In addition to the standard model, a low-pressure type is available (maximum adjustable pressure 0.4 MPa).
5.Unique flow guide structure induces a proper rotation of the passing gas, effectively separating liquids and reliably filtering solid particles.
6.Filtration precision options of 5μm and 40μm are available.
7.Three drainage options: manual, differential pressure, and automatic drainage.
8.Optional fixed bracket installation.
