Airtac HLSL: Symmetrical slide table cylinder,double acting type,cross roller type - HLSL6X20SAFT

Description

Symmetrical slide table cylinder,double acting type,cross roller type,6mm bore,20mm stroke,with magnet,adjustable rubber stopper(retraction),NPT thread

Product features:
1.Recirculating linear ball bearing,it achieves high precision,high rigidity,with antirust and dustproof function.
2.Through hole for body mounting.
3.Pin holes positioning Improved repeatability of work mounting.
4.Floating joint design Piston rod needn't endure additional torque.
5.Dual rod-doubles the outpute thrust.
6.Pin holes for positioning Improved repeatability of body mounting.
7.Body mounting holes Provide 3 mounting position

Product form

Symmetrical slide table cylinder,double acting type,cross roller type,6mm bore,20mm stroke,with magnet,adjustable rubber stopper(retraction),NPT thread Product features:1.Recirculating linear ball bearing,it achieves high... Read more

SKU: HLSL6X20-S-AF-NPT

$156.12

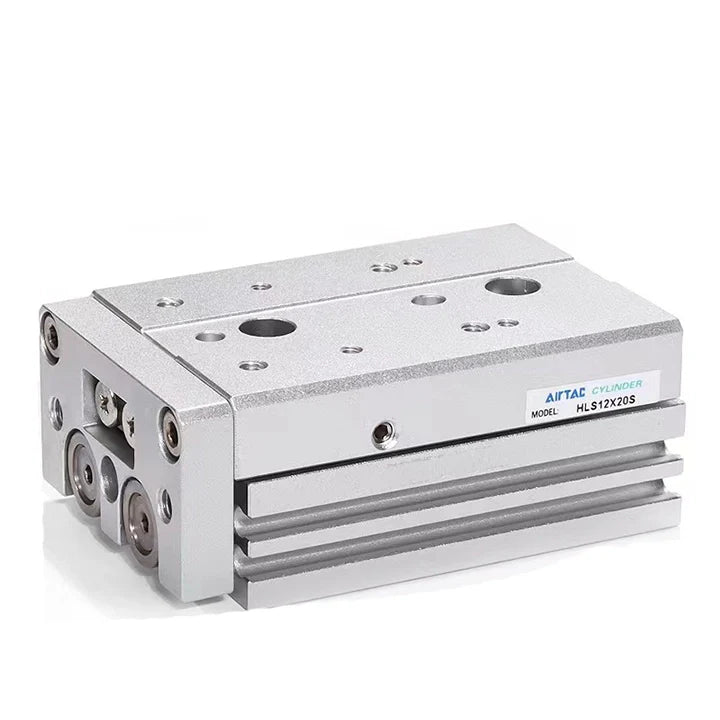

    • Image may not be representative of actual product.
    • Airtac HLS cylinders are a functional replacement for the SMC MXS series cylinders.
    • Shipped today? Order within: Oct 03, 2024 17:00:00 -0700

    Description

    Symmetrical slide table cylinder,double acting type,cross roller type,6mm bore,20mm stroke,with magnet,adjustable rubber stopper(retraction),NPT thread

    Product features:
    1.Recirculating linear ball bearing,it achieves high precision,high rigidity,with antirust and dustproof function.
    2.Through hole for body mounting.
    3.Pin holes positioning Improved repeatability of work mounting.
    4.Floating joint design Piston rod needn't endure additional torque.
    5.Dual rod-doubles the outpute thrust.
    6.Pin holes for positioning Improved repeatability of body mounting.
    7.Body mounting holes Provide 3 mounting position
