Description

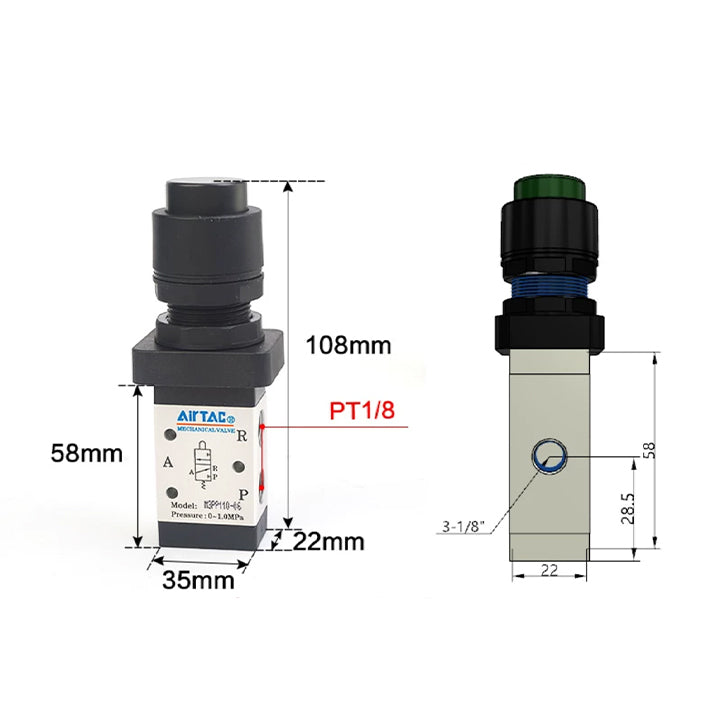

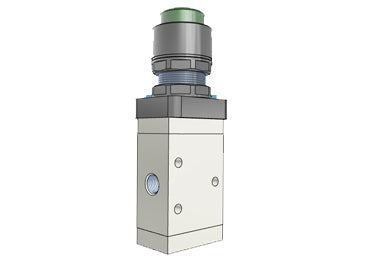

Manual air valve 3 way Protruding type 200 series single control 1/8 PT port size Green button The Airtac M3 valve series is a functional replacement for the SMC VM400 series.
1. Exhaust outlet locates over the body which is convenient to install muffler to decrease noise and pollution.
2. The external force required by the direction-change of series M3B M3R and M3L is provided by external mechanism which can be used for podition test or stroke switch limit switch
3. M3C M3D M3Y M3PF M3PM M3PP M3PL and M3HS are operated manually owning control joints with several structure forms and suitable for application under different conditions
4. It is in sliding column structure that the control force is not influenced by working pressure ( that is ther is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.
5. No need to add oil for lubrication
6. Multi-mounting makes it convenient to install and apply
7. The control joints of series of M3C M3D M3Y M3R and M3L are made of metal which has long service and more reliabel and steady performance
