Airtac SCJ:adjustable stroke type - SCJ125X100-40S

Description

Description

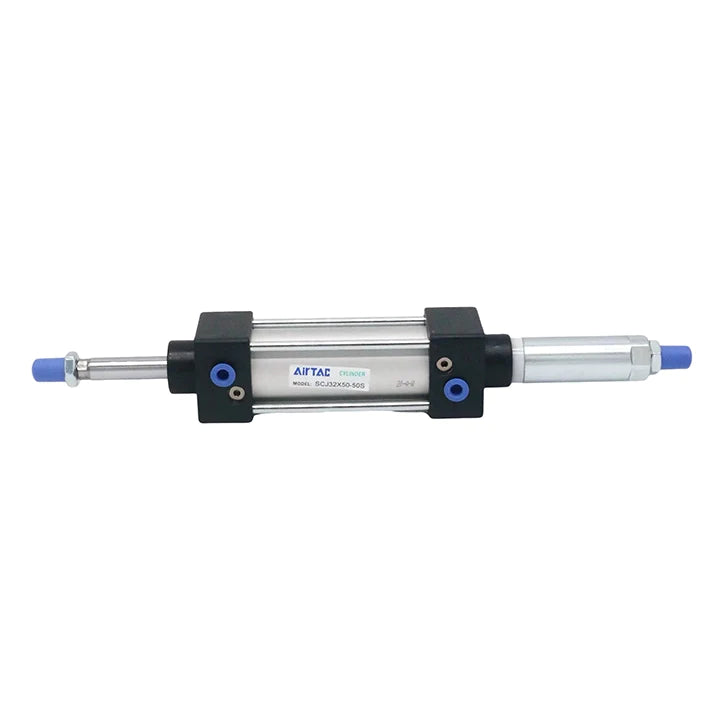

Adjustable stroke type,125mm bore,100mm stroke,40mm adjustable stroke,with magnet,TPU seals material,PT thread



Product Features:
1.Standard cylinder manufactured by Airtac.
2.The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
4.Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
5.The buffer adjustment of cylinder is smooth and steady.
6.Cylinders and mounting accessories with several specifications are optional.
7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 151 degrees celsius.

Product form

Adjustable stroke type,125mm bore,100mm stroke,40mm adjustable stroke,with magnet,TPU seals material,PT thread   Product Features:1.Standard cylinder manufactured by Airtac.2.The seal of... Read more

SKU: SCJ125X100-40-S-PT

$804.14

 More payment options
    • Image may not be representative of actual product.
    Description

    Description

    Adjustable stroke type,125mm bore,100mm stroke,40mm adjustable stroke,with magnet,TPU seals material,PT thread



    Product Features:
    1.Standard cylinder manufactured by Airtac.
    2.The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
    3.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
    4.Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
    5.The buffer adjustment of cylinder is smooth and steady.
    6.Cylinders and mounting accessories with several specifications are optional.
    7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 151 degrees celsius.

    Airtac Product Details

    Valve

    • Overview of SC Series Products
    • Installation and Usage
    • Theoretical Output Force Table
    • Product Features
    • Specifications Table
    • Stroke Table
    • Order Code Structure

    Overview of SC Series Products

    Product Type

    • Standard Pneumatic Cylinder
      • Bore sizes: 32, 40, 50, 63, 80, 100, 125, 160, 200, 250mm

    Structural Features

    • Tie-rod Construction
      • End caps are connected to the cylinder tube with tie rods for high reliability
    • Adjustable Air Cushion on Both Ends
      • Cushioning performance can be adjusted based on the load
    • Easy and Flexible Sensor Installation
      • Sensors can be mounted on the four tie rods
      • Compatible sensor models: CMSG, DMSG, EMSG

    Various Rod-End Accessories

    • • Threaded Rod End
    • • Y Joint
    • • Floating Joint
    • • Rod Eye

    Multiple Cylinder Types

    • • SC: Double Acting
    • • SCD: Double Shaft Double Acting
    • • SCJ: Adjustable Stroke Double Shaft Double Acting
    • • SCLB: Rear Lock Type
    • • SCLF: Front Lock Type
    • • SCF: With Valve
    • • SCT: Multi-position Double Acting
    • • BSC: Clamping Type

    Various Mounting Accessories

    • • LB, FA, FB, CA, CB, TC, TCM1

    Installation and Usage

    1. When the load varies during operation, select a cylinder with sufficient output force.
    2. For high temperature or corrosive environments, use cylinders designed for high temperature or corrosion resistance.
    3. In conditions with high humidity, heavy dust, water drops, oil stains, or welding spatter, appropriate protective measures must be taken.
    4. Before connecting the cylinder to the pipeline, thoroughly clean the pipeline to prevent contaminants from entering the cylinder.
    5. The working medium must be filtered through a filter element of 40 μm or finer before use.
    6. In low-temperature environments, antifreeze measures should be taken to prevent moisture in the system from freezing.
    7. Before operation, perform a trial run driven by compressed air. Set the air cushion to the minimum and then gradually adjust to avoid excessive impact damage.
    8. During operation, avoid lateral loads on the cylinder to ensure proper function and extend service life.
    9. If the cylinder will not be used for an extended period, apply anti-rust treatment to the surface and use dust caps on the air ports.

    Theoretical Output Force Table

    Bore Size (mm) Rod Diameter (mm) Action Type Effective Area (mm²) 0.1 MPa 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa 0.9 MPa
    3212Double Acting Push80480.4160.8241.2321.6402482.4562.8643.2723.6
    3212Double Acting Pull69069138207276345414483552621
    4016Double Acting Push1256125.6251.2376.8502.4628753.6879.21004.81130.4
    4016Double Acting Pull1055105.5211316.5422527.5633738.5844949.5
    5020Double Acting Push1963196.3392.6588.9785.2981.51177.81374.11570.41766.7
    5020Double Acting Pull1649164.9329.8494.7659.6824.5989.41154.31399.21484.1
    6320Double Acting Push3117311.7623.4935.11246.81558.51870.22181.92493.62805.3
    6320Double Acting Pull2803280.3560.6840.91121.21401.51681.81962.12242.42522.7
    8025Double Acting Push5026502.61005.21507.82010.425133015.63518.24020.84523.4
    8025Double Acting Pull4536453.6907.21360.81814.422682721.63175.23628.84082.4
    10032Double Acting Push7853785.31570.62355.93141.23926.54711.85497.16282.47067.7
    10032Double Acting Pull7362736.21472.42208.62944.836814417.25153.45889.66625.8
    12532Double Acting Push122721227.22454.43681.64908.861367363.28590.49817.611044.8
    12532Double Acting Pull114681146.82293.63440.44587.257346880.88027.69174.410321.2
    16040Double Acting Push201062010.64021.26031.88042.41005312063.614074.216084.818095.4
    16040Double Acting Pull188491884.93769.85654.77539.69424.511309.413194.315079.216964.1
    20040Double Acting Push314163141.66283.29424.812566.41570818849.621991.225132.828274.4
    20040Double Acting Pull301573015.76031.49047.112062.815078.518094.221109.924125.627141.3
    25050Double Acting Push490874908.79817.414726.119634.824543.529452.234360.939269.644178.3
    25050Double Acting Pull471244712.49424.814137.218849.62356228274.432986.837699.242411.6

    Product Features

    • 1. Standard pneumatic cylinder by our company.
    • 2. Piston seal adopts a special bi-directional seal structure, compact in size with oil storage function.
    • 3. Tie-rod type cylinder; end caps are connected to the aluminum tube body via pillars for high reliability.
    • 4. Compared to ISO15552 standard cylinders, SC series cylinders are shorter in length for the same bore size.
    • 5. Smooth and adjustable air cushioning.
    • 6. A variety of cylinder specifications and mounting accessories available for selection.
    • 7. High-temperature sealing materials available, allowing operation under conditions up to 150°C.

    Specifications Table

    Item 32 40 50 63 80 100
    Acting Type Double Acting Double Acting Double Acting Double Acting Double Acting Double Acting
    Working Medium Air (filtered through 40 μm or finer filter)
    Mounting Type (SC) Basic Type FA FB CA CB LB TC TCM1
    Mounting Type (SCD, SCJ) Basic Type FA LB TC TCM1
    Operating Pressure Range 0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar)
    Max. Proof Pressure 1.5 MPa (215 psi) (15 bar)
    Operating Temperature (°C) -20~70
    Operating Speed Range (mm/s) 30~800 30~800 30~800 30~800 30~800 30~800
    Stroke Tolerance (mm) 0~250: ±1.0 0~250: ±1.0 0~250: ±1.0 251~1000: ±1.5 1001~1500: ±2.0 1001~1500: ±2.0
    Cushion Type Adjustable Cushion
    Cushion Stroke (mm) 21 21 26 28 29
    Port Size PT1/8 PT1/4 PT3/8 PT1/2

    Stroke Table

    Bore Size (mm) Standard Stroke (mm) Max. Stroke (mm) Allowable Stroke (mm)
    32 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 1000 2000
    40 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1200 2000
    50 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1200 2000
    63 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1500 2000
    80 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1500 2000
    100 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 1500 2000

    Order Code Structure

    Ordering Code

    No. Item Available Options Description
    1 Model Code SC: Standard Double Acting
    SCD: Double Shaft Double Acting
    SCJ: Adjustable Stroke Double Shaft Double Acting    		 Indicates cylinder functional type
    2 Bore Size 32, 40, 50, 63, 80, 100, 125, 160, 200, 250 Indicates the bore size of the cylinder
    3 Stroke Refer to Stroke Table Specify standard stroke length
    4 Adjustable Stroke Only for SCJ: 10, 20, 30, 40, 50, 75, 100
    Not applicable for SC/SCD    		 Additional adjustable stroke for SCJ model only
    5 Magnet Code Blank: Without magnet
    S: With magnet    		 Whether equipped with a magnet for sensor detection
    6 Mounting Style Blank / LB / FA / FB / CA / CB / TC (TC used with TCM1) Select proper mounting type
    7 Seal Material Blank: TPU
    H: FKM (Viton)
    N: NBR    		 Select seal material based on working environment
    8 Thread Type Blank: PT Thread
    G: G Thread    		 Select port thread type
    Example: SC-50×100-S-FA-H-G
    Meaning: Standard double acting type, 50mm bore, 100mm stroke, with magnet, FA mounting, FKM seals, G-thread port
