Description

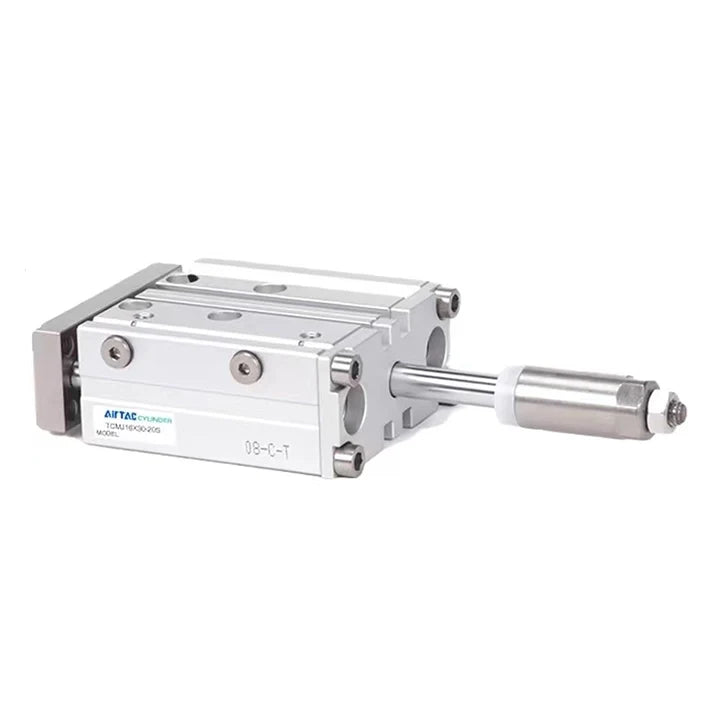

Triaxial cylinder,double acting type,Linear bearing,63mm bore,250mm stroke,100mm adjustable stroke,without magnet,G thread type
Product Feature:
1.JIS standard is implemented.
2.Two guides of special bearing steel and linear bearing or bronze bearing guide are used to prevent rotating. They can bear high torque and radial load.
*Note: Steel ball bearing: It is suitable for elevation action of cylinder or a situation requiring high precision and high bearing ability, especially for a situation requiring low fraction action process.
Bronze sliding bearing: It is suitable for action that has radial load resistance. Compared with normal cylinder of same use, the horizontal impact resistance is doubled and it has stronger torsion rigidity.
3.Drive unit and guide unit are in the same barrel that no additional accessories are needed with minimal space required. The air intake is optional and it is convenient to install.
4.The bottom, back side and fixating plate of main body respectively have two exact orientation orifices which can provide orientation installation with high precision for the situation.
5.Options of switch mounting with provision four mounting slots.
6.Special design of main body provides multi-mount.
